Home:Professional:Building a ‘nostr’ Relay Node on Ubuntu

If anything, events of the last few years have highlighted the importance of decentralization. We're seeing interesting ideas taking root in the technology field under the guise of what's being called Web3 or Web 3.0. Based on foundational technologies like blockchain, this is leading the development of next-generation decentralized (and hopefully, censorship-resistant) applications like cryptocurrency, file storage (IPFS), video streaming (Odysee), peer-to-peer messaging, and social media.

One example of the latter application is the NOSTR protocol (although an acronym of Notes and Other Stuff Transmitted by Relays, usually written like a word Nostr). To be completely frank, while the idea seems promising technically, there is very little activity on the platform. There was a bit of an uptick after some notable people expressed interest, but even that seems to have died down. Obviously it's a bit of a chicken-and-egg problem.

Almost by definition, the graphs that constitute decentralized technologies often depend on volunteers providing nodes. In the Nostr protocol such nodes are called relays. This article shows the steps needed to set up such a relay on Ubuntu for anyone so inclined.

Prerequisites

Things that you'll need that this article won't discuss: Obviously you'll also need a host to run the server; you're most likely to want to set up some cloud-based server. In this article I'll illustrate how to set one up using DigitalOcean, but any other cloud provider will do.

Setting up the server

There are only a few things to take note of when you're creating your cloud server instance. Here I'll create one (DigitalOcean calls them ‘droplets’) in the SFO region in which I'm located.

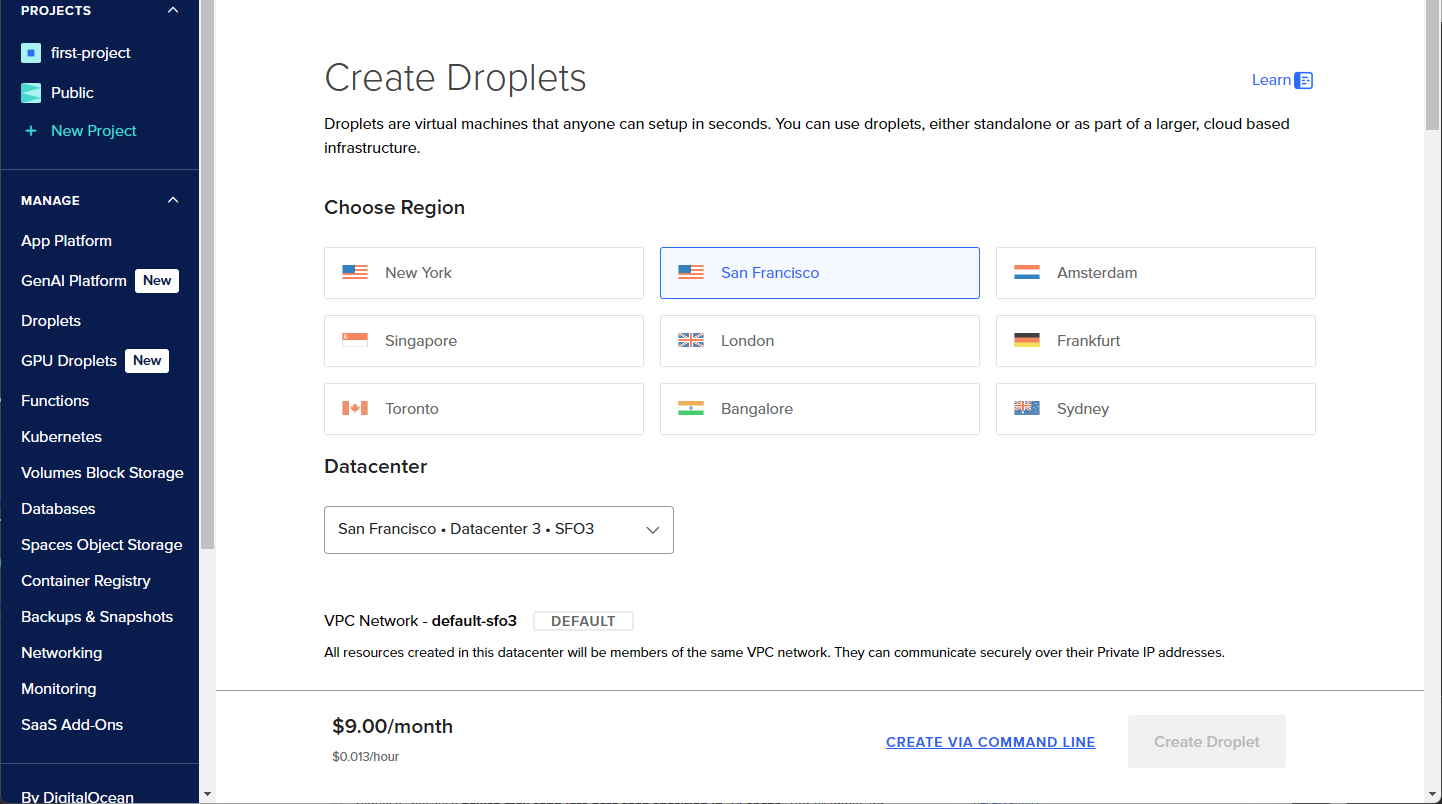

Screenshot of DigitalOcean droplet creation options

The procedure I'm using here uses Ubuntu (or at least, Debian); so pick some up-to-date version:

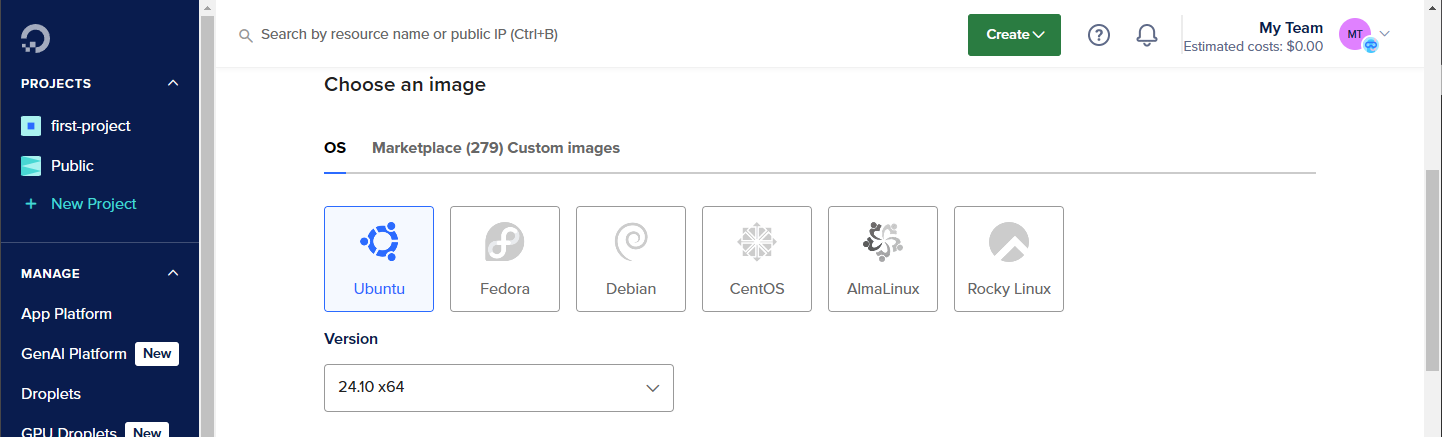

Screenshot of DigitalOcean droplet OS options

In my experience I never got anything near the amount of traffic that anything other than the standard shared CPU and RAM was sufficient, so I picked pretty much the cheapest available option with one shared CPU, ½ GB RAM, and 10 GB boot disk:

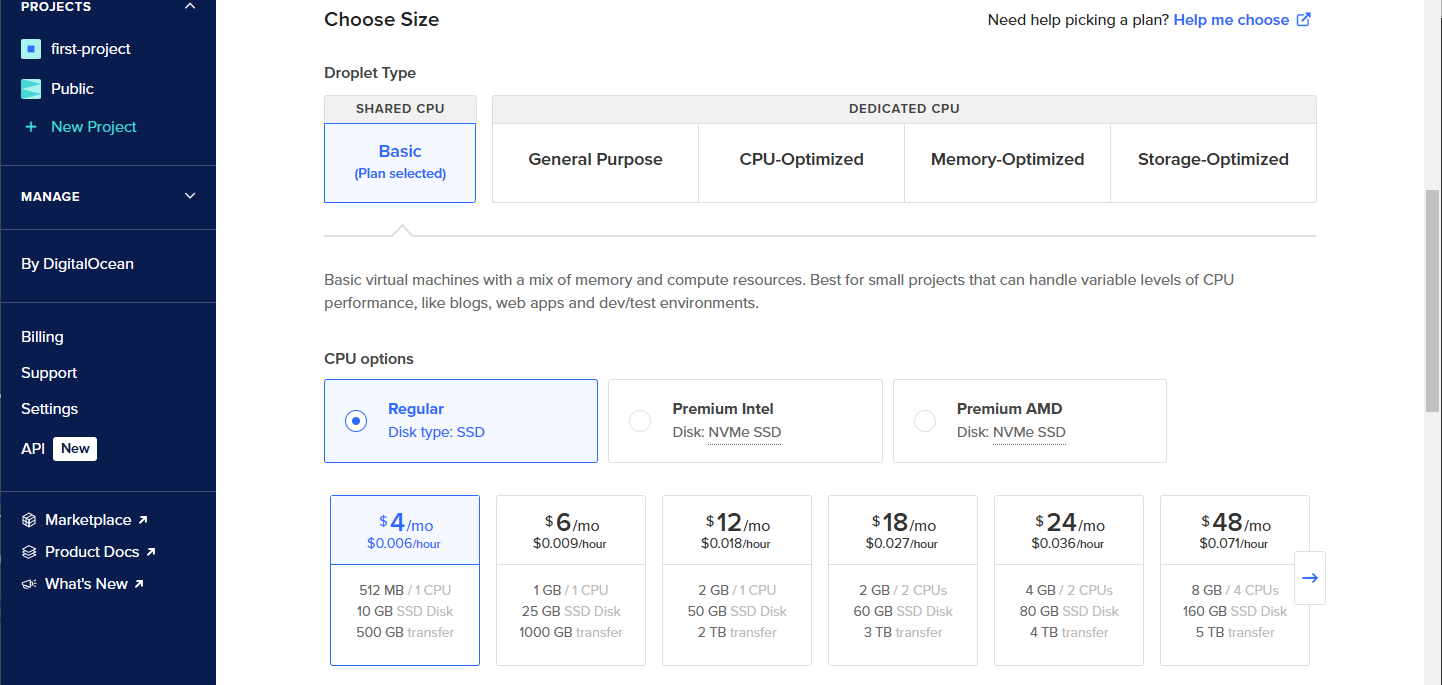

Screenshot of DigitalOcean droplet CPU options

We will need a more significant amount of storage to hold the message database. In my experience I accumulated about ¼ TB worth of messages over the course of half a year, so I'm going with ½ TB which I can always update later if necessary.

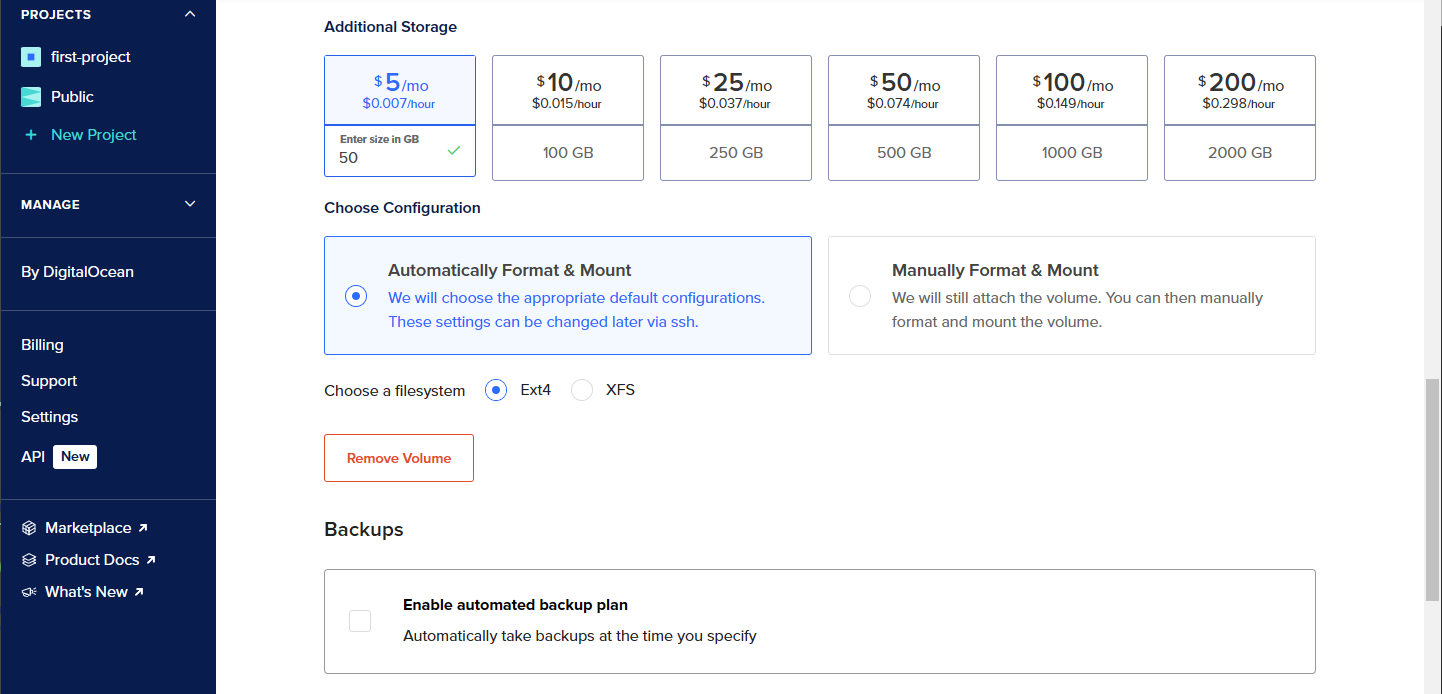

Screenshot of DigitalOcean droplet disk options

I also needed to choose the SSH key that the server instance is authorized to accept connections from. All this will depend on the particular provider.

To minimze cost, I didn't add any of the ‘extras’ such as monitoring or backups. All in all this comes down to $9 per month.

Setting up the OS

There wasn't much to do here; I just made sure Ubuntu was up to date and that the installed packages were updated to their most recent versions.

There is no need to create a user account: the installation of the relay service will create its own service account.

Building the Relay Software

There are many different implementations of the Nostr protocol; I'm using strfry, which is written in C++.

Since I don't have an Intel Ubuntu machine to build the server on, I just created another (temporary) droplet for building the server using the same version of Ubuntu that is slightly beefier at 2 shared CPUs and 4 GB RAM. I wanted to use a different machine because I don't like installing compilers and other nonessential tooling on a production server. Obviously Docker would be the perfect solution if you have it available.

The build instructions are well-documented in the repository README, but I'm going to use a slightly different and smoother approach that works specifically on Debian. You will still need to install the dependencies listed there, but don't build it:

sudo apt install -y git g++ make libssl-dev zlib1g-dev liblmdb-dev \
	libflatbuffers-dev libsecp256k1-dev libzstd-dev
git clone https://github.com/hoytech/strfry
cd strfry/
git submodule update --init
Now note the debian directory hierarchy with everything needed to build a Debian package. This can be used to easily build and package the server:
sudo apt install dpkg-dev debhelper
dpkg-buildpackage -us -uc
The built packages (oddly) are in the parent directory. Transfer the strfry_x.y.z-1_amd64.deb to the new cloud instance.

Configuring and Running the Relay

To run the relay server you don't need most of the dependencies needed for building; just:
apt install libsecp256k1-dev
Then just install the Debian package you just built:
dpkg --install strfry_0.9.6-1_amd64.deb
Edit the
/etc/strfry.conf
configuration file to taste; especially the info block. You must change the nofiles configuration or the relay will not start; I set it to zero. Now, run the service:
systemctl enable strfry.service
systemctl start strfry
systemctl status strfry

Configuring and Running the Reverse Proxy

We'll use nginx for SSL termination. At this point you'll need to create a DNS record and obtain the SSL certificate (with associated private key) for the server. For personal reasons I chose to have both done with the hosting provider that I already use. You'll probably use Let's Encrypt for the certificate; put the certificate and key in /etc/ssl/. Install nginx:
apt install nginx
Completely replace the default configuration in /etc/nginx/sites-available/default with:
server {
        server_name your.server.com;
        location / {
                proxy_set_header X-Forwarded-For $proxy_add_x_forwarded_for;
                proxy_set_header Host $host;
                proxy_pass http://127.0.0.1:7777;
                proxy_http_version 1.1;
                proxy_set_header Upgrade $http_upgrade;
                proxy_set_header Connection "upgrade";
                }
        listen 443 ssl;
        ssl_certificate /etc/ssl/your-server.crt;
        ssl_certificate_key /etc/ssl/your-server.key;
        }
Note there are no entries for HTTP port 80. Now, run the service:
systemctl enable nginx.service
systemctl start nginx
systemctl status nginx

Observation

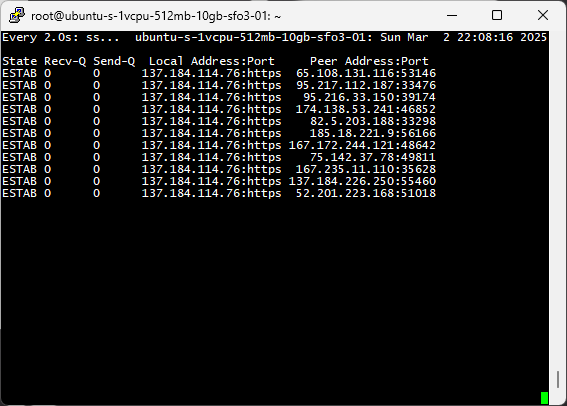

Run watch ss -t 'sport = 443': Screenshot of running relay connection monitoring

Conclusion

It's very easy to run this and potentially contribute in a small way to burgeoning Web development. It will be interesting to see if Nostr gains in popularity.
